OS-GU04FW TTX GPON ONU Optical Network Units 1GE+3FE+WIFI support web,CLI,TR069 Realtek chip

Name: OSGU04FW TTX GPON ONU Optical Network Units 1GE3FEWIFI support webCLITR069 Realtek chip
Brand: Opti-s
Price: 1 USD

Wholesale OS-GU04FW TTX GPON ONU Optical Network Units 1GE+3FE+WIFI support web,CLI,TR069 Realtek chip from china suppliers

Brand Name : Opti-s

Model Number : OS-GU04FW

Certification : CE/ROHS/CCC

Place of Origin : China

MOQ : 1

Payment Terms : T/T;Paypal

Delivery Time : 5-8 work days

Chip : Realtek 9603

Optical Wavelength : Tx 1310nm, Rx 1490nm

management : Support WEB, CLI, TR069

Contact Now

GPON ONT/HGU(1GE+3FE+WIFI)

1. Overview

1GE+3FE+WIFI conforms to the GPON technical standard defined by ITU-T G.984, and meets the technical requirements of GPON equipment from multiple operators in China. It is a residential gateway device with routing functions for GPON ONU and LAN Switch for residential and SOHO users.

The uplink of 4FE+WIFI provides one GPON PON interface, while downlink provides four Ethernet and WIFI interfaces. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.

2. Hardware Specification

PON Interface	Interface Type	SC/PC, CLASS B+
	Rate	Uplink: 1.25Gbps; Downlink: 2.488Gbps
User-Side Interface	110/100/1000BASE-T; 310/100BASE-T
Size (mm)	135(L)×110(W)×30(H)
Maximum Power Consumption	<8W
Weight	200g
Operating Environment	Temperature: -10°C ~ +55°C
	Humidity: 5% ~ 95% (no condensation)
Power Supply	External Power Adapter 12V/1A
Power-Adapter Input	100-240V AC, 50/60Hz
Power Interface Size	metal inner diameter: φ2.5±0.1mm; outer diameter: φ5.5±0.1mm length: 9.0±0.1mm
WLAN Module	Built-in / external dual antenna, antenna gain 5dbi
	Support 2.4GHz, 300M transmission rate

3. Software Feature

Standard Compliance	Compliant with ITU-T G.984 GPON standard FEC (Forward Error Correction) in both upstream and downstream Dynamic bandwidth status report 802.1p mapper for upstream QoS scheduling based on SP or WRR between GEM port and T-CONT Downstream multicast GEM port and broadcast GEM port
GPON	Support ONU registration mechanism
	Support DBA
	Support ONU software batch upgrade, scheduled upgrade, real-time upgrade
	Support standard OAM and extended OAM management functions
	Support the maximum effective transmission distance of 20 km
	Support long illuminating detection and optical power detection
WLAN	Support WPA2-PSK/WPA-PSK encryption
	Support client isolation
	Support 4 * SSID
	Support for 802.11 BGN mode
	Support maximum rate of 300M
Multicast	IGMP V2 Proxy/Snooping
Management & Maintenance	Support web management
	Support CLI/Telnet management
	Support port loopback detection

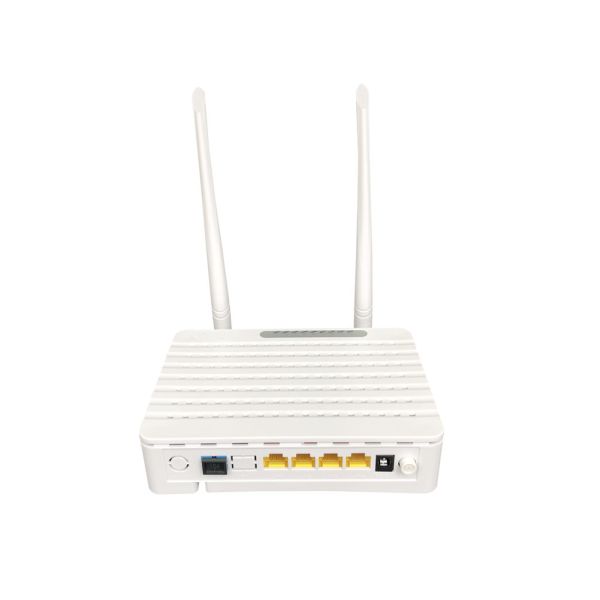

OS-GU04FW TTX GPON ONU Optical Network Units 1GE+3FE+WIFI support web,CLI,TR069 Realtek chip Images
